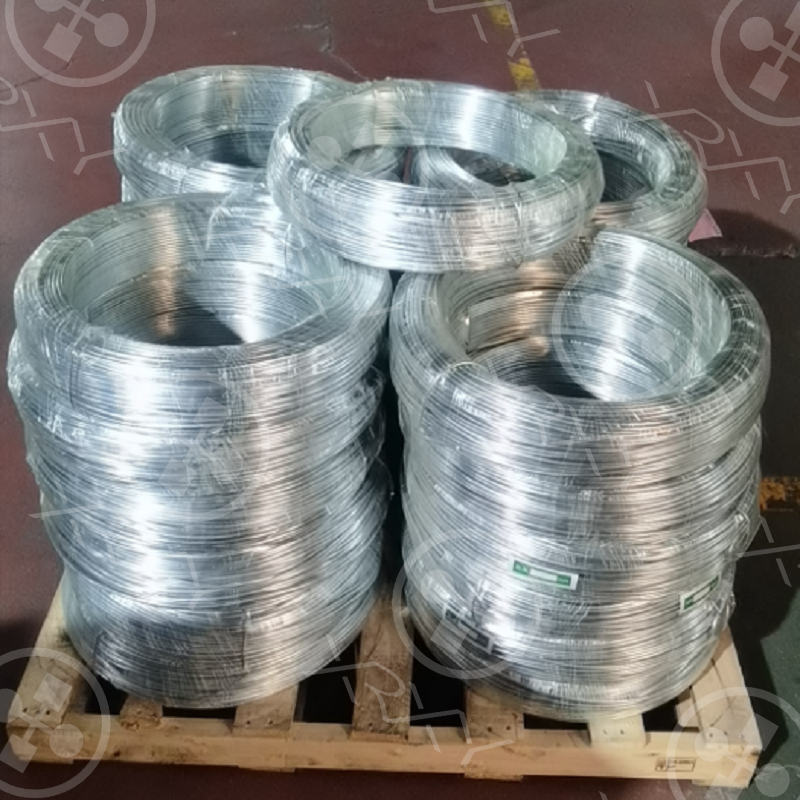

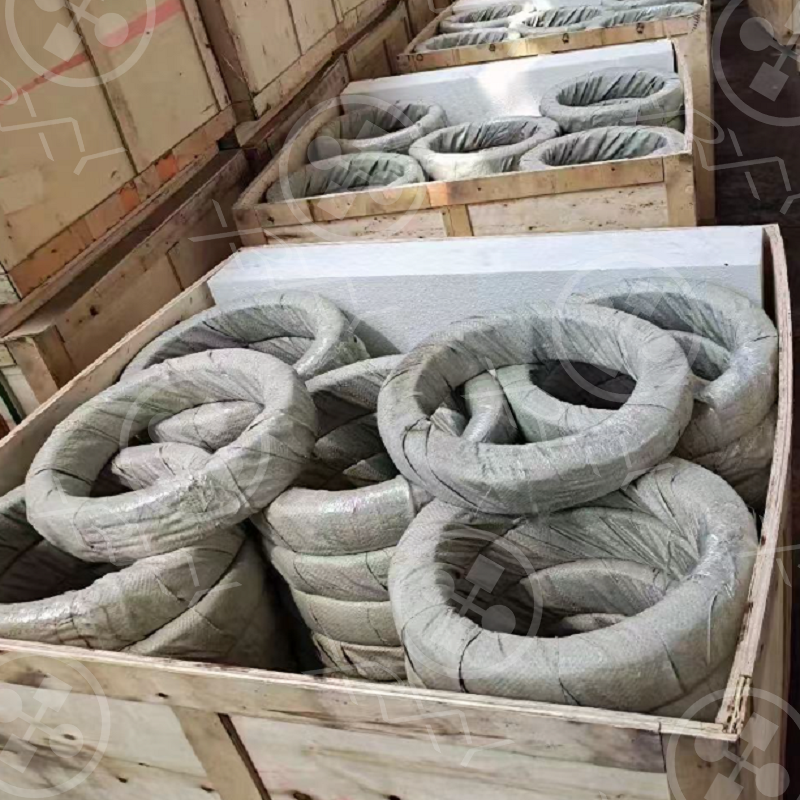

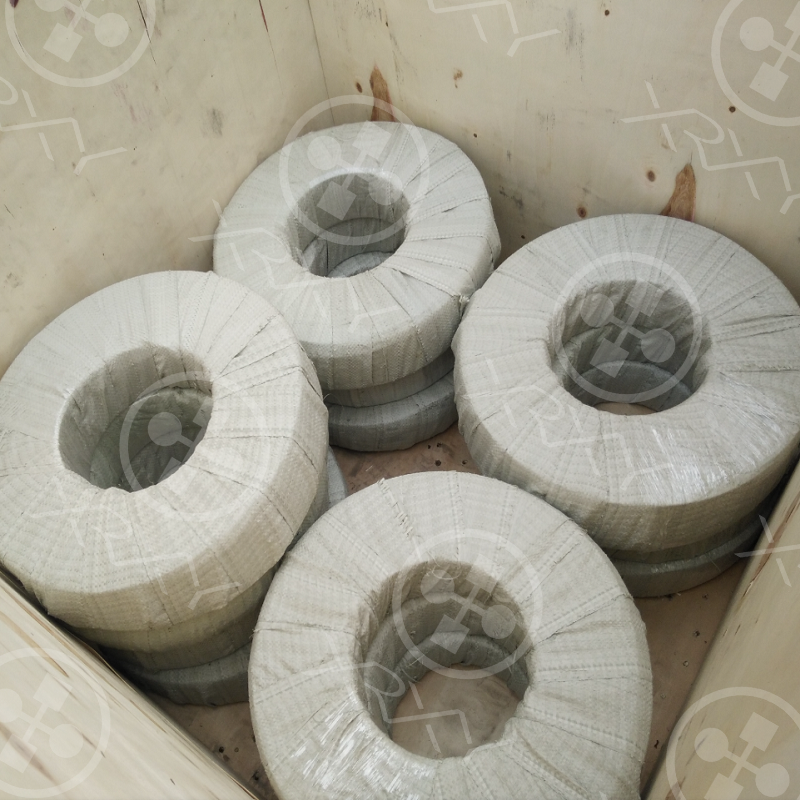

Aluminum wire bundling

Inquire Now Next Product

Product Description

Aluminum Wire Product Specification & Description Document

1. Product Specification Table

Product Name	Diameter (mm)	Net Weight/Packaging	Aluminum Content (%)	Applications
Aluminum Wire	Φ1.2	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Used in cable industry, capacitors, power poles, iron towers, containers, derricks, bridges, gates, tunnel frames, metal supports, large steel structures, and other industries for surface thermal spraying aluminum anti-corrosion
Aluminum Wire	Φ1.6	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Same as above
Aluminum Wire	Φ2.0	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Same as above
Aluminum Wire	Φ2.3	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Same as above
Aluminum Wire	Φ2.8	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Same as above
Aluminum Wire	Φ3.0	20-25kg/barrel package; 7-7.5kg/axle package	≥99.7	Same as above

2. Product Notes

Appearance & Quality: The aluminum wire has a bright and smooth surface, no broken wires, no burrs, no impurities entering the wire, and no jamming during application.

Material Compliance: The product strictly complies with the international standard GB/T3954-2008 (for pure aluminum wire).

Safety Tip: When using (e.g., with model DF-100 thermal spray equipment), avoid direct contact between the zinc-aluminum alloy (or aluminum wire) and the human body to prevent burns.

Production Capability: The company can produce customized aluminum wires, 5-series aluminum alloy wires, 6-series aluminum alloy wires, and 8-series alloy wires according to customer requirements.

3. Company Information

Company Name: Shijiazhuang Xinyue Zinc Industry Co., Ltd.

Telephone: 0311-88318888; 18032885699

Address: East Park, Zhengding New Area, Shijiazhuang City

I can optimize this document into a concise version for international procurement (focusing on core parameters and application scenarios). Do you need this adjustment?

Pure Aluminum Wire Technical Document

1. Chemical Composition of Pure Aluminum Wire (%)

Chemical Component	Standard Value	Test Value
Aluminum (Al)	≥99.7	≥99.7
Zinc (Zn)	≤0.07	-
Manganese (Mn)	≤0.05	-
Copper (Cu)	≤0.05	-
Iron (Fe)	≤0.4	-
Silicon (Si)	≤0.3	-
Titanium (Ti)	≤0.05	-
Total Impurities	≤0.3	-

2. Physical Properties and Diameter Tolerances of Pure Aluminum Wire

2.1 Physical Performance Indicators

Item	Index
Tensile Strength (MPa)	80~115
Elongation (%)	≥11
Resistivity (Ω·m)	≤28.01

2.2 Diameter and Tolerance

Diameter (mm)	Tolerance (mm)
1.0~2.0	+0.00/-0.05
2.0~3.0	+0.00/-0.06
3.0~4.76	+0.00/-0.07

3. Product Features

Spraying Flexibility: Spraying can be applied to the entire surface or local areas of large components, which is convenient and economical for local coating requirements of large structural parts.

Base Material Stability: The base material does not change during spraying, and the parent material has low heat absorption temperature, so the workpiece has no deformation.

Coating Thickness Range: The thickness of the coating can vary in a wide range, from micrometers to millimeters.

Formability & Corrosion Resistance: Thermal spraying technology can form a coating on the material surface, and can also be used to manufacture mechanical parts (i.e., spray formed products). Thermally sprayed aluminum wire has excellent corrosion resistance in different atmospheric environments and water quality. When the spray thickness is only 0.08-0.4mm, the service life of components can reach 20-40 years or more, making it an ideal anti-corrosion material at present.

4. Transportation and Storage

Transportation: Avoid using tools that may cause acid, alkali, salt and other corrosive substances to contaminate the packaging during loading and transportation.

Storage: Store in a dry, ventilated warehouse without corrosive substances, and strictly prevent rain and water splashing.
