Product Description
|
Category |
Details |
|
Technical Parameters |
Input Power Supply: 3-Phase AC 380V 50Hz |
|
|
Input Power: 10.5KVA |
|
|
Input Current: AC 16.5A |
|
|
Output Current: DC315A |
|
|
Duty Cycle: 60% |
|
|
Insulation Class: Class F |
|
|
Output No-Load Voltage: DC24-34V |
|
|
Voltage Adjustment Gears: 4 gears in total |
|
|
Overall Dimensions (mm): LengthWidthHeight 750550950 |
|
|
Weight: 140kg |
|
|
Power Supply Characteristic: Stable characteristic |
|
|
Compressed Air Pressure: ≥0.6MPa |
Performance Features

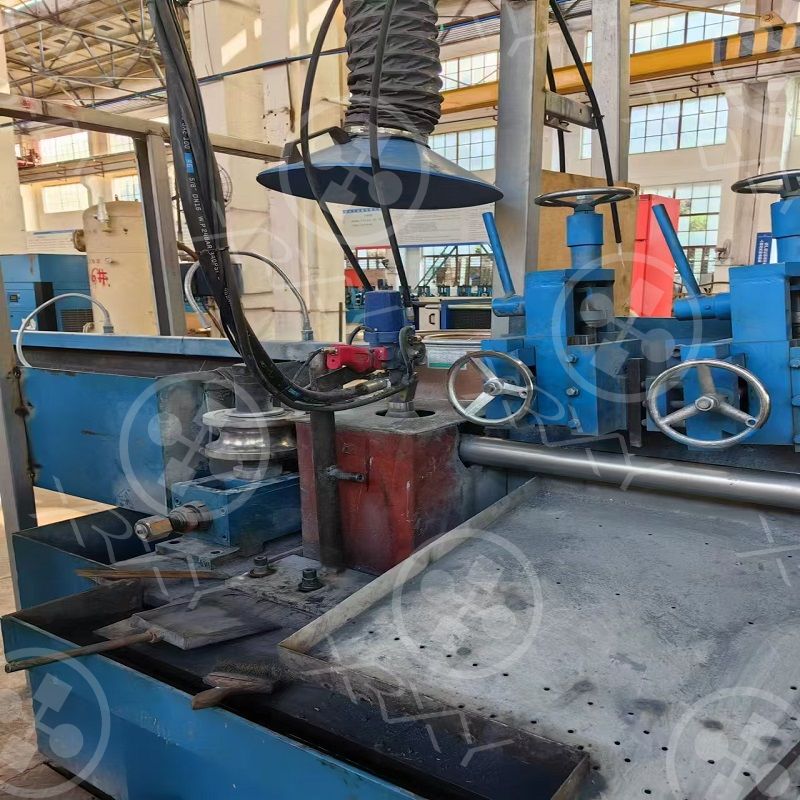

The zinc repairing machine is a new-generation product with high efficiency and low energy consumption, developed by our company for straight-seam high-frequency welded pipes. It repairs weld seams synchronously with welded pipe production, can work continuously for a long time, and has good zinc layer adhesion and stable spraying.
Features:
1. High spraying efficiency, easy and safe operation;
2. High bonding strength between coating and substrate;
3. Consistent and stable wire feeding speed, ensuring fast and reliable arc striking;
4. Capable of stable 24-hour continuous operation;
