Main spraying materials: Zinc, aluminum, copper, carbon steel, stainless steel, Babbitt alloy, aluminum and its alloy materials, etc.
Product Description
|
Technical Parameters |
Input Power Supply: 3-Phase AC 380V 50Hz |
|
|
Input Power: 19.5KVA |
|
|
Input Current: AC 29.5A |
|
|
Output Current: DC400A |
|
|
Duty Cycle: 60% |
|
|
Insulation Class: Class F |
|
|
Output No-Load Voltage: DC22-48V |
|
|
Voltage Adjustment Gears: 9 gears in total |
|
|
Overall Dimensions (mm): LengthWidthHeight 750550950 |
|
|
Weight: 180kg |
|
|
Power Supply Characteristic: Stable characteristic |
|
|
Compressed Air Pressure: ≥0.6MPa |

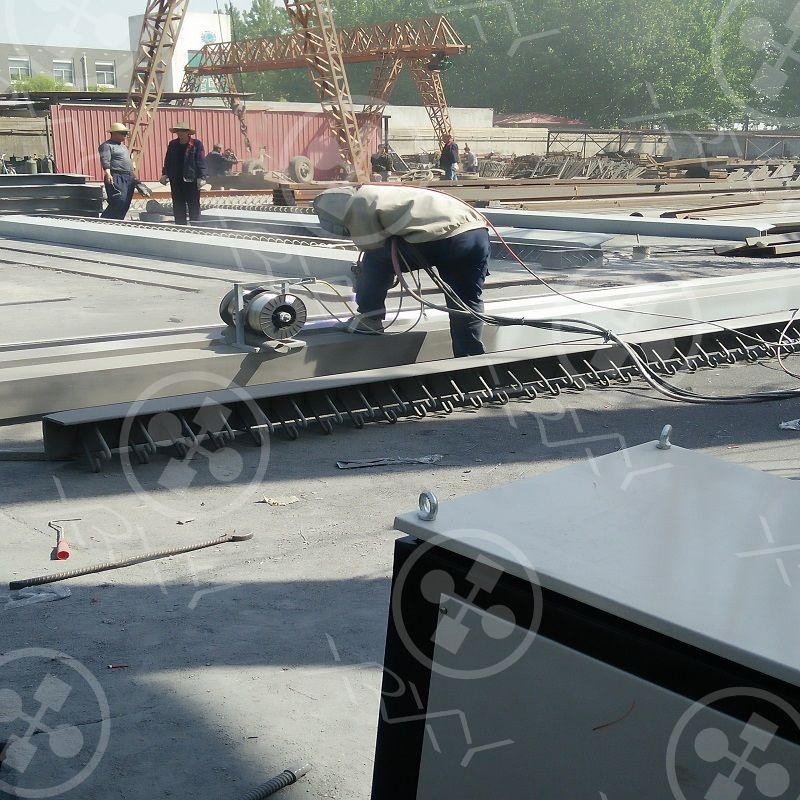

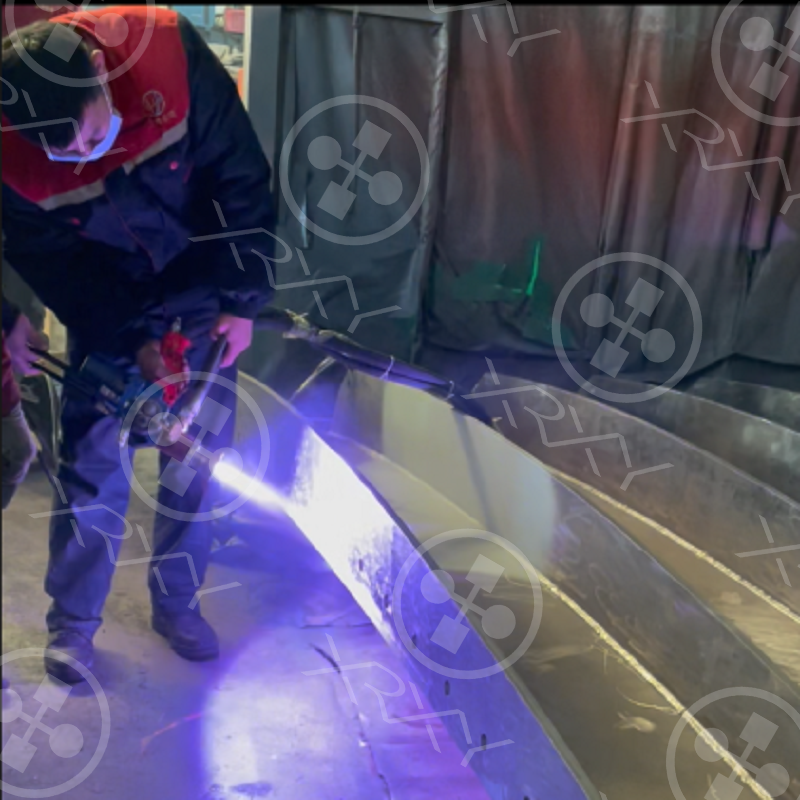

Performance Features The arc spray machine is mainly used for anti-corrosion of steel structures, surface repair of worn or misprocessed parts, and preparation of capacitive conductive coatings in fields such as ships, bridges, water conservancy and hydropower projects, wind power generation, mining machinery manufacturing, petroleum, petrochemical metallurgy, port construction, light industry, aircraft manufacturing, rolling stock, instruments and meters, precision manufacturing, electronics industry, etc.
Main spraying materials: Zinc, aluminum, copper, carbon steel, stainless steel, Babbitt alloy, aluminum and its alloy materials, etc.

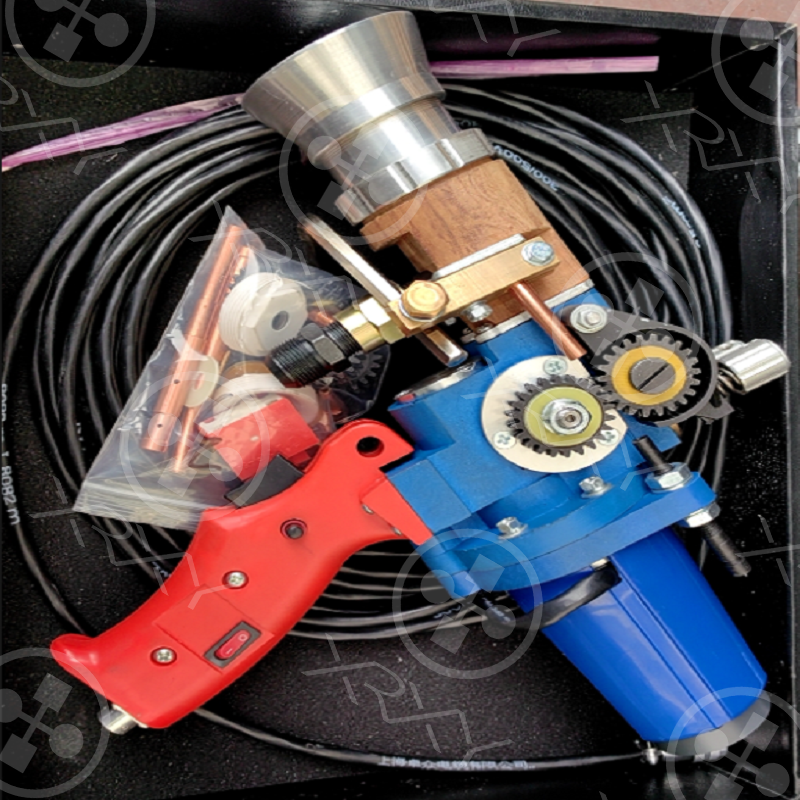

According to the production needs of different working conditions, the spray gun can be fixed on the machine tool or used for spraying large regular workpieces.
Features Good quality of spray coating; High density; Strong bonding force; High spraying efficiency; High efficiency and energy saving; Easy and safe operation
