The arc spraying machine is mainly used for steel structure anti - corrosion in fields such as ships, bridges, water conservancy and hydropower projects, mining machinery manufacturing, petroleum, petrochemical metallurgy, port construction, light industry, aircraft manufacturing, locomotives and vehicles, instruments and meters, precision manufacturing, electronic industry, as well as surface rep
Product Description
China / Spraying Equipment / Spraying Materials / Professional Brand
The arc spraying machine is mainly used for steel structure anti - corrosion in fields such as ships, bridges, water conservancy and hydropower projects, mining machinery manufacturing, petroleum, petrochemical metallurgy, port construction, light industry, aircraft manufacturing, locomotives and vehicles, instruments and meters, precision manufacturing, electronic industry, as well as surface repair of machine parts with wear or processing errors, and preparation of capacitive conductive coatings, etc.
Main spraying materials: zinc, aluminum, copper, tungsten carbide, stainless steel, Babbitt alloy, lead and its alloy materials, etc.

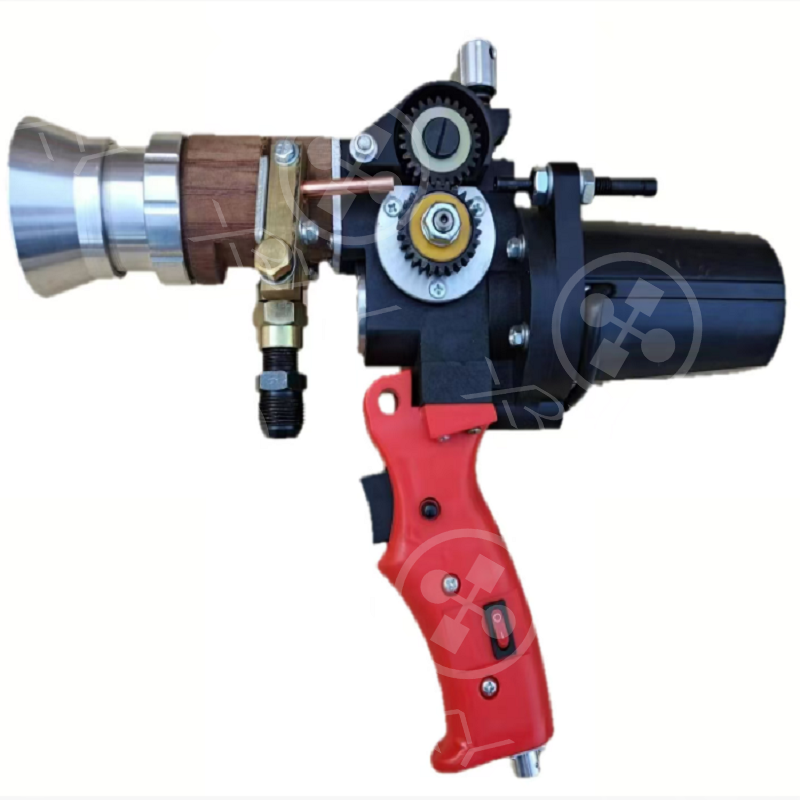

According to the production needs of different working conditions, the spray gun can be fixed on the machine tool to spray regular large workpieces.

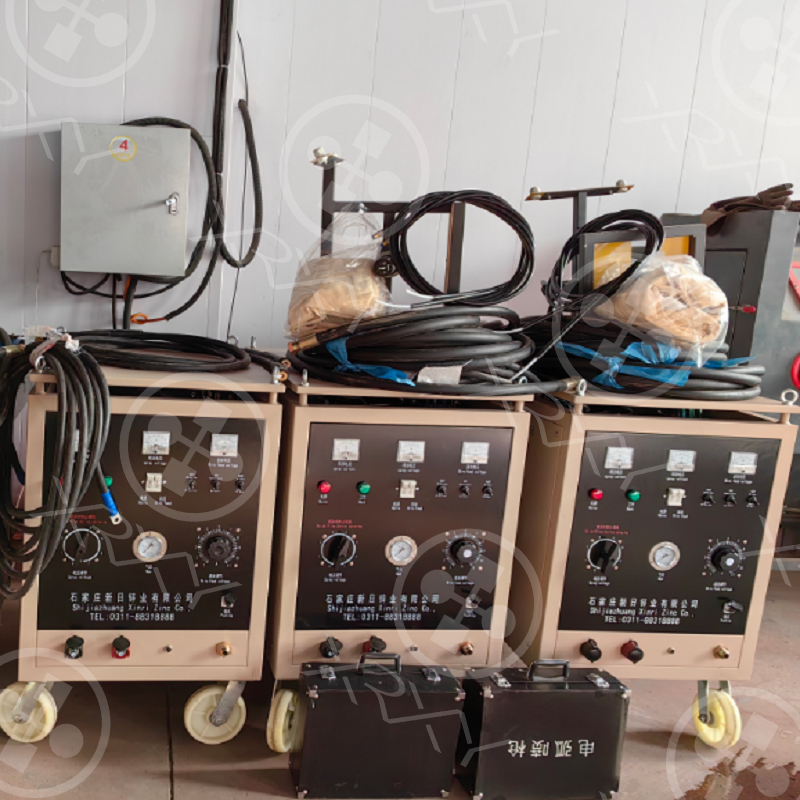

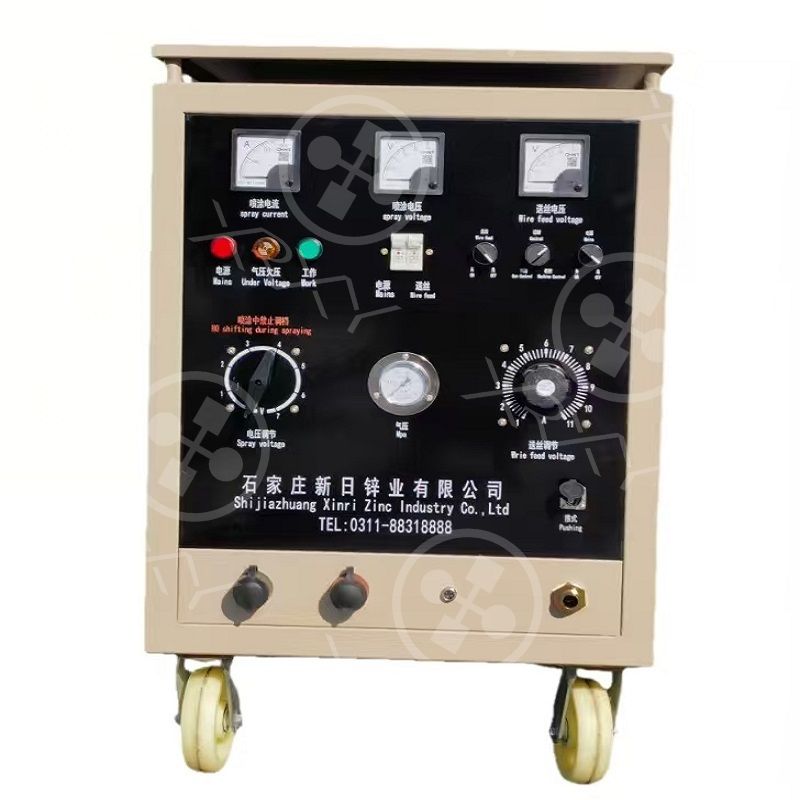

PT - 600A
|
Technical Parameter Item |
Details |
Technical Parameter Item |
Details |
|
Input Power Supply |
3 - phase AC 380V 50Hz |
Output Current |
DC600A |
|
Input Power |
28.8KVA |
Load Rate |
60% |
|
Input Current |
AC 34A |
Insulation Class |
Class F |
|
Output No - load Voltage |
DC22 - 48V |
Overall Dimension (mm) |
Length × Width × Height 850×610×970 |
|
Voltage Regulation Levels |
A total of 10 gears |
Weight |
220 kg |
|
Power Supply Characteristic |
Flat characteristic |
Compressed Air Pressure |
≥0.6Mpa |
|
Technical Parameter Item |
Details |
Technical Parameter Item |
Details |
|
Input Power Supply |
3 - phase AC 380V 50Hz |
Output Current |
DC400A |
|
Input Power |
18.5KVA |
Load Rate |
60% |
|
Input Current |
AC 22A |
Insulation Class |
Class F |
|
Output No - load Voltage |
DC22 - 48V |
Overall Dimension (mm) |
L750×W550×H950 |
|
Voltage Regulation Levels |
A total of 10 gears |
Weight |
160 kg |
|
Power Supply Characteristic |
Flat characteristic |
Compressed Air Pressure |
≥0.6Mpa |
|
Feature Category |
Specific Features |
|
Function |
Dual - use of push and pull |
|
Operation |
Simple and safe operation |
|
Coating Quality |
Good quality of sprayed coating |
|
Spraying Efficiency |
High spraying efficiency |
|
Bonding Force, etc. |
High density and strong bonding force |
|
Energy Saving |
High efficiency and energy saving |
