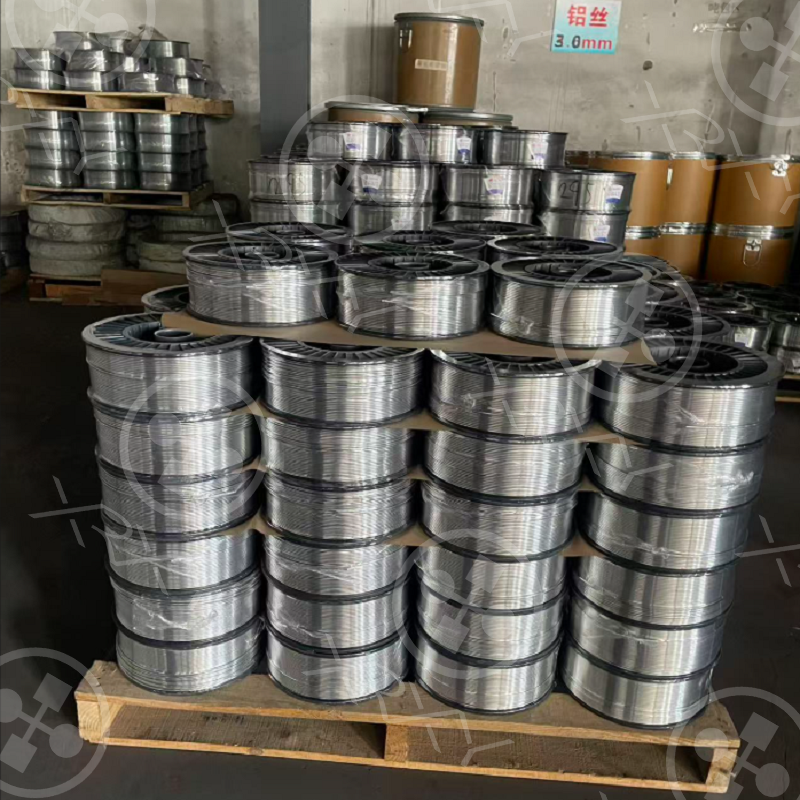

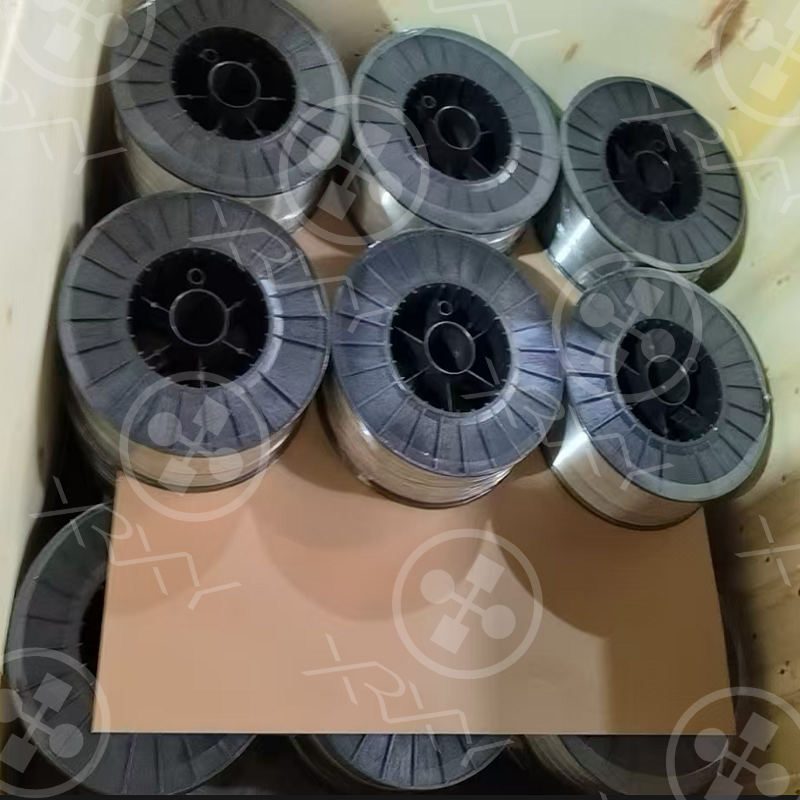

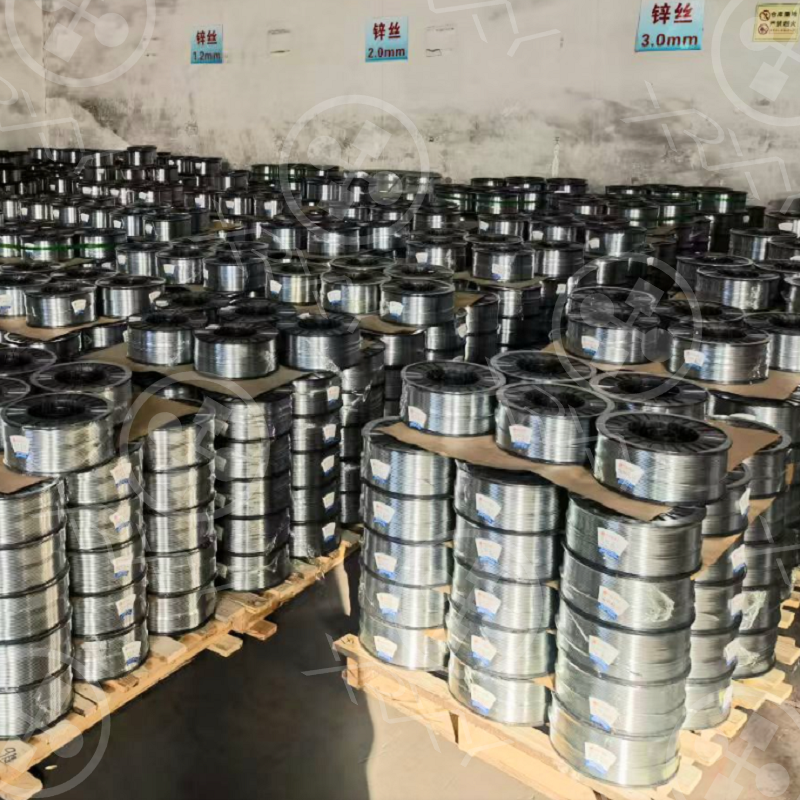

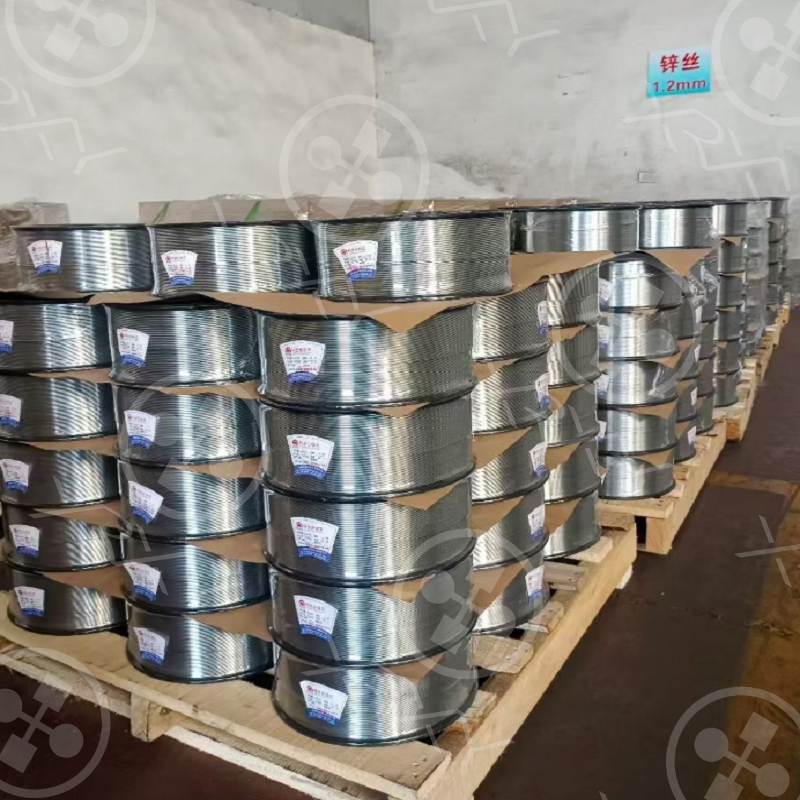

Shaft mounted zinc wire

The company is equipped with XJ-650T extruder, five sets of advanced domestic automatic casting choke furnaces, continuous wire drawing production equipment, as well as multiple sets of circulating water tanks, digital precision wire winding machines, automatic machines, packaging machines and other professional production equipment, ensuring the production precision and efficiency of products.

Inquire Now Next Product

Product Description

Zinc Wire Product Specification Table

Diameter (mm)	Packaging Method	Zinc Content (%)	Application Scenarios
Φ1.2	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	Applicable to ductile pipes, power capacitors, power tower poles, iron towers, containers, power tower poles, iron towers, containers, derricks, bridges, gates, tunnel frames, metal supports, large steel structures and other surface thermal spraying zinc anti-corrosion industries
Φ1.6	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	The same as above
Φ2.0	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	The same as above
Φ2.3	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	The same as above
Φ2.8	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	The same as above
Φ3.0	25kg axle package; 15–20kg axle package; 50–250kg barrel package	≥99.995	The same as above
Φ3.175	25kg axle package; 250kg barrel package	≥99.995	The same as above
Φ4.35	200kg barrel package	≥99.995	The same as above
Φ0.1	25kg barrel package; 15–20kg axle package; 50–250kg by diameter	≥99.995	Applicable to ductile iron pipes, power capacitors, power valves, containers, bridges, gates, tunnel framework metal stents, large steel structure surfaces, thermal spraying zinc corrosion protection industry
Φ0.2	25kg barrel package; 15–20kg axle package; 50–250kg by diameter	≥99.995	The same as above
Φ2.2	25kg barrel package; 15–20kg axle package; 50–250kg by diameter	≥99.995	The same as above
Φ2.8	25kg barrel package; 15–20kg axle package; 50–250kg by diameter	≥99.995	The same as above
Φ3.0	25kg barrel package; 15–20kg axle package; 50–250kg by diameter	≥99.995	The same as above
Φ3.17	250kg by diameter	≥99.995	The same as above
Φ4.35	200kg by diameter	≥99.995	The same as above

High-Purity Zinc Wire Product Technical Document

1. Product Description

This product is high-purity zinc wire with a smooth and bright surface, free of broken wires, oil stains, burrs, scratches and scars. There is no jamming during actual use, which ensures the smoothness of construction and application.

2. Raw Materials and Purity Standards

Raw Materials: Rectified zinc ingots produced by Huludao Zinc Industry Co., Ltd. are used as raw materials, and production control is strictly carried out in accordance with the national standard GB470-2008.

Zinc Content: The zinc content of the product is ≥99.995%, and the core chemical composition indicators far exceed the basic requirements of industry standards.

3. Chemical Composition Indicators of Pure Zinc Wire (%)

Element	Standard Value	Test Value
Zn	≥99.99	99.9954
Cd	≤0.002	0.0013
Cu	≤0.002	0.0009
Fe	≤0.003	-
Pb	≤0.003	-
Other Elements	≤0.01	0.0046

4. Physical Properties and Diameter Tolerances of Pure Zinc Wire

Physical Property Item	Index	Diameter Range (mm)	Tolerance (mm)
Tensile Strength (MPa)	115±10	0.3-1.0	+0.00/-0.03
Elongation (%)	45±5	1.0-2.0	+0.00/-0.05
Melting Point (℃)	419	2.0-3.0	+0.00/-0.05
Bulk Density (g/cm³)	7.14	3.0-4.76	+0.00/-0.07

5. Production Equipment

6. Testing Process

Testing covers the entire process fromraw materials (zinc ingots, aluminum ingots, etc.) to finished products, using high-end testing instruments such as DF-100 Reading Spectrometer, Computer Eddy Current Tester, Plasma Atomic Emission Spectrometer, andElectronic Universal Testing Machine.

Strict control is implemented throughout the entire process from raw material testing to finished product stretching-fatigue-packaging, with no omissions in details, to ensure the stability of product performance.

The test results of product zinc content are certified by SGS and comply with the EU ROHS 2002/95/EC Directive and subsequent revision requirements.

7. Product Quality and Market

With advanced equipment and leading technology, strict quality inspection and control are implemented. Zinc wire is the core product, with an annual zinc output of over 11,000 tons.

Long-term strategic cooperation has been established with many state-owned enterprises and Sino-foreign joint ventures. The products are exported to regions such as East Asia (Japan, South Korea), Southeast Asia, the Middle East, North America, South America, and Eastern Europe, and have a good reputation and industry recognition in domestic and foreign markets.
